Your Trusted Custom 14-Way Golf Stand Bags Manufacturer

A 14-division stand-frame carry bag is among the more demanding builds in soft goods. A tall, narrow shell has to stay upright on sloped ground, keep fourteen shafts separated and rattle-free, and survive a season of being set down hard, dragged on its leg tips and lifted into a vehicle. The decisions below separate a programme with a 2 percent return rate from one that quietly eats your margin.

Specification options for 14-division stand-frame carry bags

The grid below is the configuration sheet our production team issues once a buyer sends a reference sample or a tech pack. Most lines are adjustable. The top cuff and the leg set are not cheap to change, because both involve tooling, so those two decisions get locked before anything else is quoted.

The cuff is the most expensive part of the build and the one buyers underestimate. A 14-slot cuff has to hold fourteen dividers in registration while the shell flexes, so wall thickness, rib placement and the divider seat radius all matter. Moving from 210 mm to 250 mm internal diameter is not a scale-up: divider pitch, shell circumference and pocket panel nesting all change.

How a 14-division stand-frame carry bag is assembled

Cuff and dividers are assembled as a sub-unit before the shell is closed. Dividers are cut to length, sleeved in EVA where specified, and seated into cuff slots with solvent-free adhesive plus a mechanical stitch through the cuff web. Sewing dividers straight to the shell is the most common cause of top-of-bag distortion, because shell fabric creeps under load and the slots drift out of parallel.

The shell itself is cut as two or four panels plus a separate base panel, not as one wrap. Four-panel shells hold their round section better under load and make it possible to run a heavier denier on the lower third where abrasion concentrates. Seams are bound, not raw, and stitched at 8 to 10 stitches per inch with a bonded nylon thread; a bound seam at this height carries the vertical load of the whole shell when the bag is lifted by the top handle.

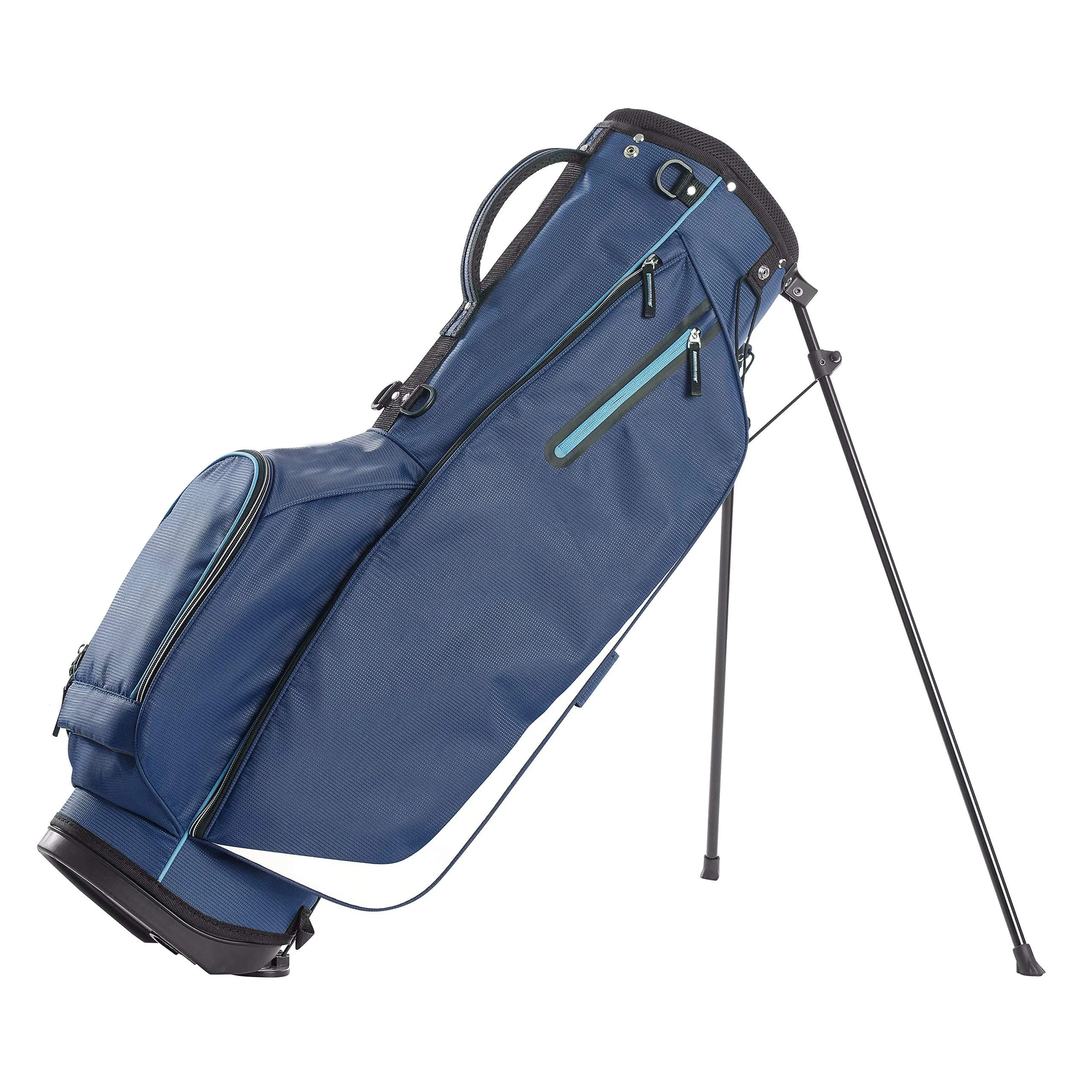

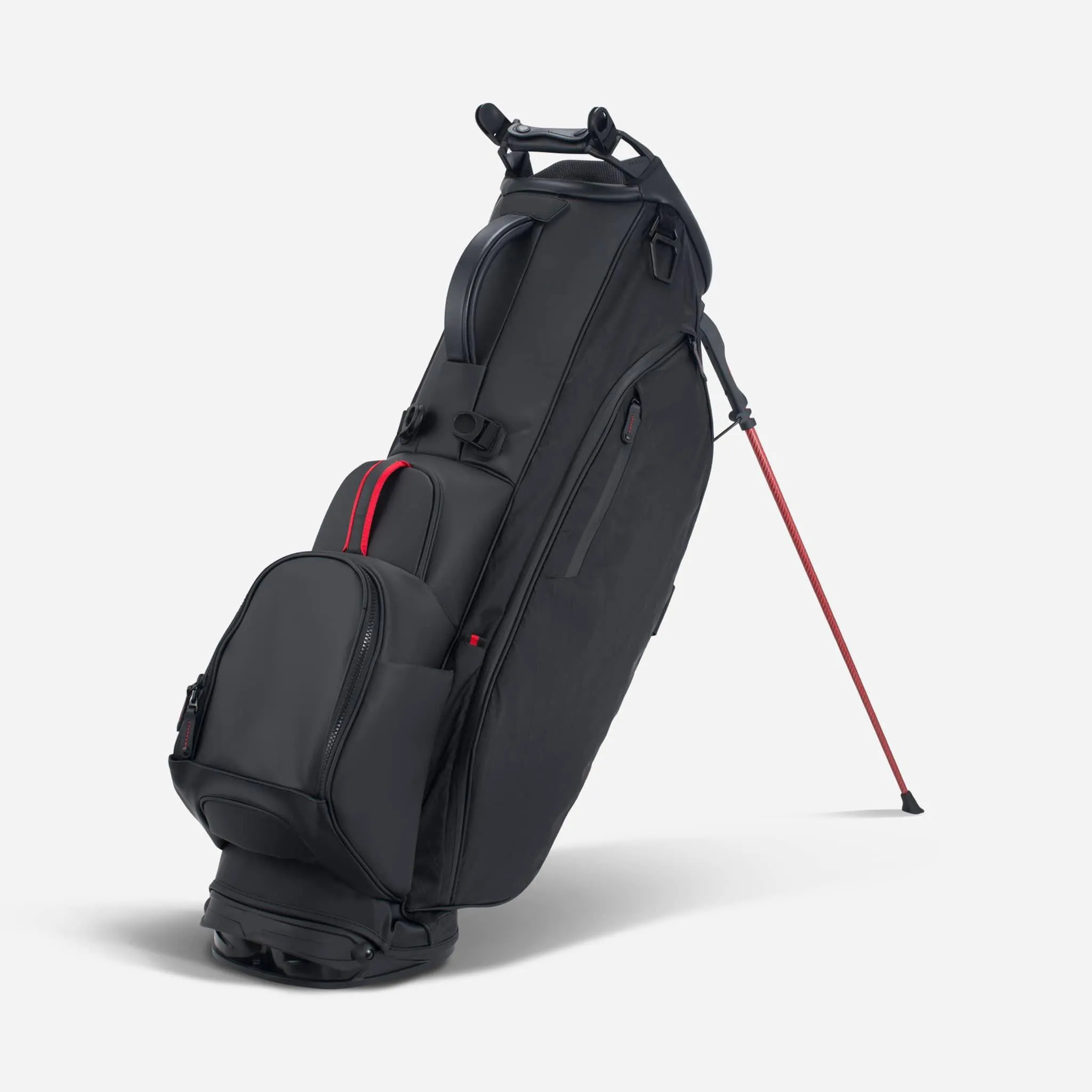

The stand mechanism is a load path, not an accessory. Leg tips plant on the ground, load travels up the leg, into the pivot bracket, and into a reinforced plate stitched to the base panel and the lower shell. If that plate is stitched only to the lining, the bracket tears out within a season. We specify a 2 mm moulded or laminated plate, box-stitched through to the shell, with the leg pivot riveted rather than screwed.

Base moulding does two jobs: it keeps the bag from rocking on uneven ground and it keeps the bottom panel off wet surfaces. A 3 mm EVA moulding is acceptable for entry builds; above that, a TPU skid bonded over the moulding and four raised feet are worth the cost. The base is also where drainage matters, so moulded bases carry two drain channels that are checked during inspection for blockage.

Cost drivers and MOQ for 14-division carry bags

Unit price is dominated by three things: cuff tooling, the leg set, and pocket sub-assembly count. Tooling for a new cuff geometry runs USD 300–2,500 depending on cavity count and whether divider slots are machined post-mould. That one-off charge is why a 500-unit run costs more per piece than 1,500 units of the identical design.

Programmes start at 500 units per style per colour. Once a style has run once and the tooling exists, reorders open at 300 units. Sampling takes 6–10 working days for a standard build and 12–15 where a new cuff or a custom leg bracket is involved; sample fees run USD 50–150 and are credited against your first bulk order.

Standard terms are T/T 30/70, FOB Xiamen, with EXW, CIF and DDP available. Quotes come back in 24–48 hours once the tech pack and reference photos are in hand. Transit is 25–35 days by sea, 5–8 days by air, 3–5 days by courier.

Quality gates and acceptance criteria

Every programme runs on AQL 2.5, sampled to ISO 2859-1, with Critical 0, Major 2.5 and Minor 4.0; AQL 1.5 is available on request. Inspection happens on our 4,950 m² SGS-verified production floor before container loading, and the same report format is used on reorders so batches can be compared.

Nickel release on metal trim is checked to EN 1811 where the destination requires it, alongside REACH (EC 1907/2006) screening on coated fabrics. The tests that predict field performance are the stand cycle, divider retention and the base drop. A leg mechanism that survives 5,000 plant-and-lift cycles on a jig survives a season; one that fails at 800 does not.

Branding and trim placement on a tall cylindrical shell

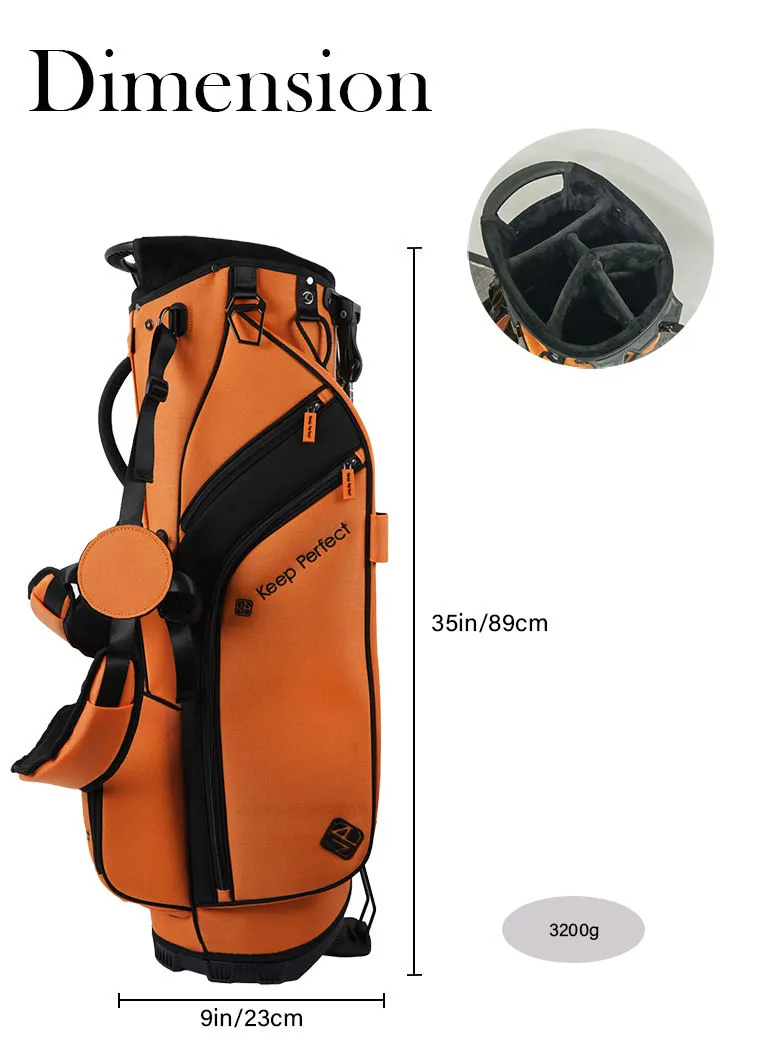

A 900 mm cylinder gives a narrow, tall branding field, which rules out some methods and favours others. Embroidery is the default for the main pocket face, but hoop clearance on an assembled bag is limited, so panels are embroidered before assembly and artwork must be finalised before the cutting marker is released. Flat fields run 120 × 60 mm on the apparel pocket and 90 × 45 mm on the ball pocket.

TPU and silicone badges read on a curved surface and survive cart-body abrasion, which is why they lead premium programmes. Woven labels sit best on the harness and grab handle. Sublimated panels give full-colour artwork at low unit cost but only on polyester face fabric, so they are incompatible with a nylon shell.

Ordering path for 14-division stand-frame carry bags

Six steps take you from a sketch to a loaded container. Most first programmes reach shipment in 9–12 weeks, with the cuff tooling on the critical path.
